Horizontal PVC compound mixer for mixing plastic powder 100-1000KG

  • 1 - 99 Sets
    $100,000.00
  • >=100 Sets
    $5,000.00
Model Number:
SRL-W SRL-Z
Lead Time:
Quantity(Sets) 1 - 5 >5
Est. Time(days) 20 Negotiable
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Manufacturing Plant
Condition:
New
Application:
Plastic Raw Mixing
Automatic Grade:
Automatic
Production Capacity:
180-1500KG
Place of Origin:
Jiangsu, China
Brand Name:
BM
Voltage:
380V/50Hz/3Phase
Power(W):
5.5-110kw
Dimension(L*W*H):
2500*2100*3800 Mm
Weight:
1500-8000kg
Certification:
CE SGS
Warranty:
1 Year
After-sales Service Provided:
Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support
Usage:
Mixing PVC Powder
Material:
304 Stainless Steel
Raw material:
Pvc Wpc Powder
Capacity:
100-1500kgs
Supply Ability
Supply Ability:
50 Set/Sets per Quarter
Packaging & Delivery
Packaging Details
20'' and 40'' container, film covered for China origin Zhangjiagang city Beierman Machinery high speed hot/cold mixer unit, vertical type, horizontal type .
Port
shanghai sea port
Picture Example:
package-img
package-img
Lead Time :
Quantity(Sets) 1 - 5 >5
Est. Time(days) 20 To be negotiated
Video Description
Product details

There is vertical type, horizontal type, and there are many different models with different capacity.

BM-10L,BM-25L,BM-50L,BM-100L,BM-200L,BM-300L,BM-500L,BM-600L,BM-800L,BM-1000L,

BM-1250L,BM-2000L,BM-2500L,BM-3000L

SRL-Z50/100,SRL-Z100/200,SRL-Z200/500,SRL-Z300/600,SRL-Z500/1000,SRL-Z800/1600,etc.

SRL-W300/1000,SRL-W500/1600,SRL-W800/2000,SRL-W800/2500,SRL-W1000/3000,SRL-W800*2/4000,etc.


CE approved Zhangjiagang city Beiman Machinery PVC powder high speed hot/cool mixing unit specially designed for the plastic mixing,drying, coloring.

- high speed mixing motor inverter started
- high speed parts 3 methods temperature increasing: material self-friction/electric heating/conduction oil heating
- material discharge 2 methods: temperature controller automatic release/mixing time control
- the parts contact with raw material are all made of stainless steel 304 and mirror polishing treatment
- the barrel covers and three direct links made of cast aluminum
- the bearing chambers with special designs for the lubricating oil injection
- driving motor over current protection design
- PLC touch screen control system can be choosed for the high automatic control requirement
- special designed mixing axis design can avoiding the raw material leaking from the barrel
- mixing paddles after strict balance test

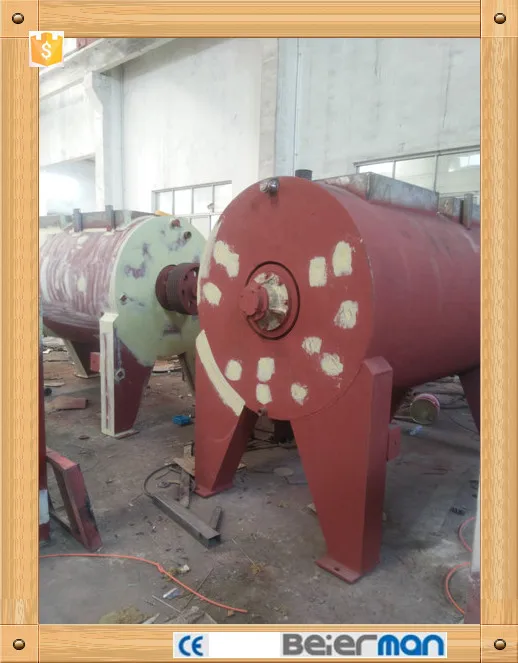

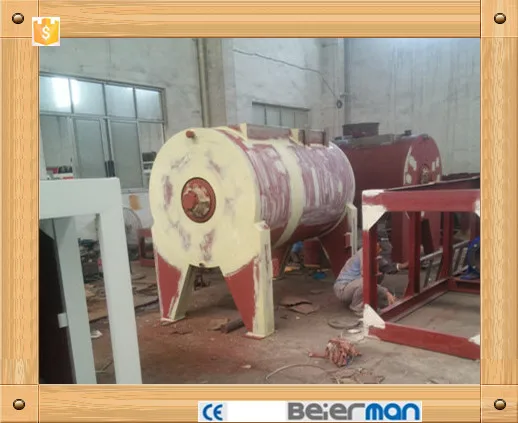

Here I offer one of our horizontal mixing unit SRL-W800/2500,
the hot mixer 800L volume , each batch can mix about 350kg/batch, 8-12min/batch,
1 pcs of 2500L cool mixer can bear 2 batches discharge from hot mixer.

Advantage

- world famous brands major parts:

Motor
with SIEMENS
Inverters
with ABB/ FUJI / LG / OMRON/DELTA
Contactors
with SIEMENS / Schneider
Temperature controller
with OMRON/ RKC
 PLC system
with SIEMENS/DELTA

- Skilled workers for machines producing
- Experience engineers all with passports ready for customers services
- Good Prices get from square quantity major parts purchase with lower cost
- Full line running test for customer checking before delivery

Packaging & Shipping

  - Packaging: poly-wooden cases for mixer, no need fumigate; bubble films packaging
- We suggest the customer to purchase poly-wooden case packaging; if no, we will fixed the machines on containers walls with steel wires
- Shipping: By Sea or Train

Company introduction

- BEIERMAN MACHINERY was established by three skilled technician/engineer/sales for plastic extruding line, plastic recycling lines producing, sale and services.

- We have 3000 square meters working house for machines making, there are 40 workers for machines producing and a 5 engineers service team for the machines running test, installation, workers training and machines repairmen.

- we have already get CE certificate for our machines and factory, which ensured the high quality level of all machines we are producing

- we will attend several home and abroad plastic machines industry fairs to show the customers our quality, machines and services.

- there will be 1-2 new produced machines will be showed to the customers every year.

- we already established cooperation with the customers from Middle East, Southeast Asia and south America countries.

Exhibition
Certificate
Our services

Pre-sales services

we will take customers to visit our factory and check the machines quality from airport/bus station/train stations

- we will re-designed the machines according to customer's different raw material formulations: driving motors power, electric power model, wall thickness of barrel, control method

After-sales services

we will offer electric diagram, installation diagram, usage manual

- we will offer the customers online introduction to solve the machines problems/send engineers for customers machines installation, running test, workers training, machines repairmen services.

- we will offer customers spare parts at cost prices all life long of the machines.
