Stainless steel high quality SJ-180/22 plastic extruder machine granulating manufacturer Beiman factory good price for sale

FOB Reference Price:Get Latest Price
$24,000.00 - $40,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
SJ-180/22 SJ-180/10 SJ-150/25 SJ-150/30 SJ-150/33 SJ-25/25 SJ-30/25 SJ-30/28 SJ-35/25 SJ-35/28 SJ-45/25 SJ-45/28 SJ-45/30 SJ-45/33 SJ-50 SJ-55 SJ-65 SJ-75 SJ-80 SJ-90 SJ-100 SJ-120 SJ-130 SJ-140 SJ-150 SJ-200 SJ-250
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 Negotiable
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Application:
Granules
Plastic Processed:
PE
Screw Design:
Single-screw
Place of Origin:
Jiangsu, China
Brand Name:
BEIMAN
Voltage:
220/380/415V/440V/480V
Dimension(L*W*H):
3200mm*1400mm*2600mm
Weight:
2000KG
Certification:
CE Certificate
After-sales Service Provided:
Field installation, commissioning and training
Warranty:
1 Year
screw design:
single screw design
Model:
SJ-180
Raw material:
plastic flakes
suitable to:
granules making
control method:
semi-atomatic/PLC automatic control
gear box:
hard surface and helix gears
Motor:
SIEMENS
Contactor,switch:
Schneider
Temperature controller:
OMRON
Automatic Grade:
automatic/semi-automatic
Power(W):
75KW
Supply Ability
Supply Ability:
150 Set/Sets per Year
Packaging & Delivery
Packaging Details
film package,container of China origin Zhangjiagang city Beiman Machinery SJ180/22 pelletizing machine single screw extruder
Port
SHANGHAI/NINGBO
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 To be negotiated
Product Description


single screw extruder specially designed for PP PE pellets extruding, it also can combine with the PP PE PC pipe production line, PP PE PC profile production line.

We produce Single screw extruder, and also high speed high efficient Single screw extruder.

The set is advanced in design,high in output,good in plasticization and low in energy consumption.

The involute gear driving is characterized by low noise,stable running,big bearing capacity and long service life.

Single screw extruder' screw structure also can re-designed accoring to customer's detail raw material and the purposes.

we have many kind of types,such as 25/25;30/25;35/25;45/25;45/28;45/30;50/28;50/33;55/25;65/28; 65/30;65/33;75/25;75/30;75/33;80/28;90/28;90/30;90/33;120/15;120/22;120/32;120/33;130/32;150/10;150/30......etc ,some small single screw extruder be equipped as colormark co-extruder ,or lab extruder; some big single screw extruder ,together with our auxiliary machine,will be equipped as whole production line to make pipe,to make profile, to make granule.


For pipe making machine, we can supply machine for pipe diameter from 16mm to 800mm,

different diameter range will be equipped with different machines.


For granulating line, there is different capacity,different type,

such as single stage string granulating line;

double stage string granulating line;

water ring granulating line.


Here I offer one of our Single screw extruder SJ180, such as SJ180/22,SJ180/10,for your reference.
The SJ180 single screw extruder generally is equipped for PE HDPE PP pelletizing line.
Detail parameter of Single screw extruder SJ180 as below:

No.
Main parts
Detail specification
1
Model
SJ180/22
2
Design
Single screw extruder
3
Driving motor
75KW
4
Screw diameter
180mm
5
L/D ratio
22:1
6

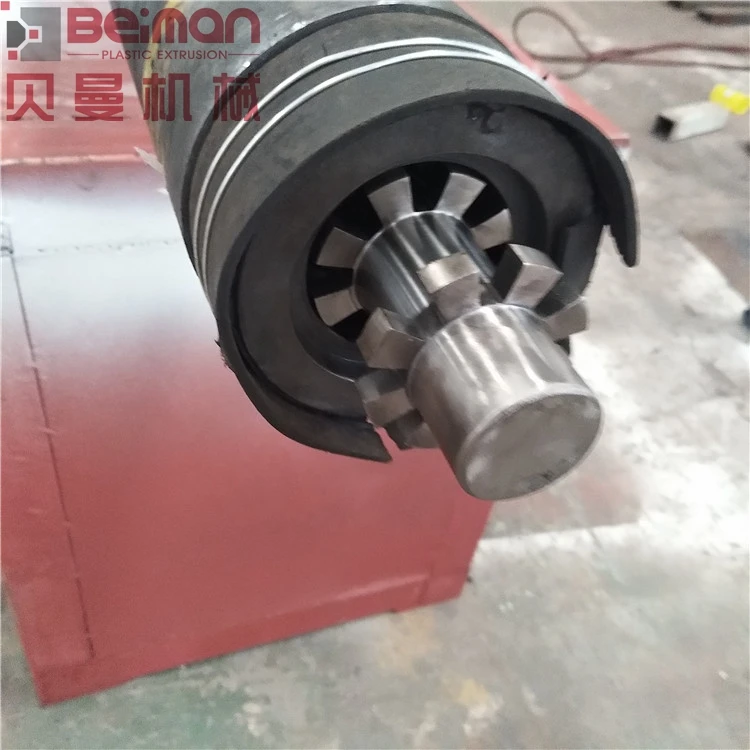

Screw material
38CrMoAIA
7
Screw straightness
< 0.015mm
8
Screw hardness
HV900-1000
9
Surface treatment,barrel,inner
Nitriding layer with thickness:0.6-0.8mm,Polishing
10
Heating power
24KW in total
11
Heater
Cast-Aluminum+stainless steel covering
12
Cooling method
1KW
13
Speed reducer
Hard gears vertical speed reducer
14

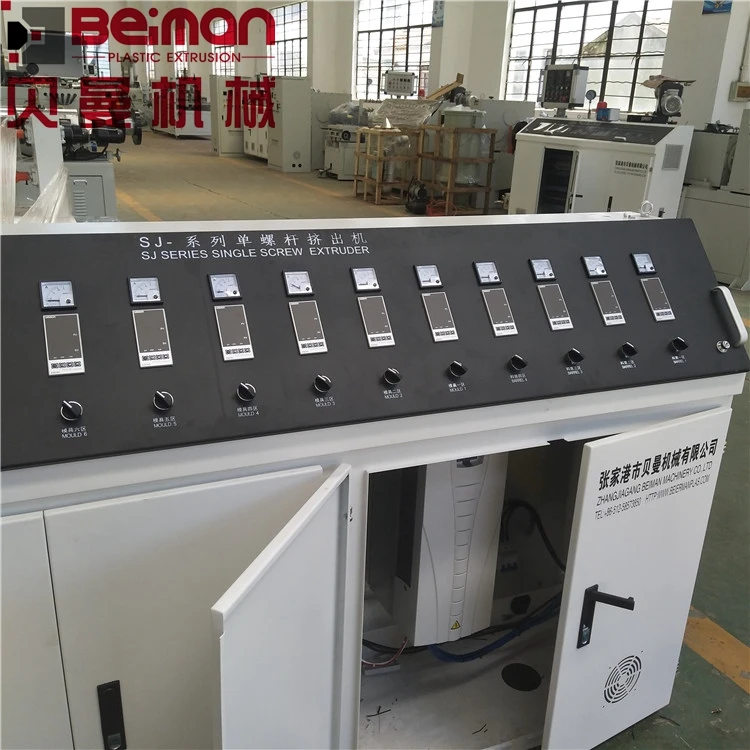

Electric cabinet
AC motor
15
Contactor
SIEMENS
16
Inverter
ABB
17
Dimension(L*W*H)
3.2m*1.4m*2.6m
18
Weight
2000kg
29
Voltage
380V,50Hz,3phase(or design according to customer require)
20
Suitable plastic processed
PE,PP,PVC,etc

Advantage:

- world famous brands major parts:

Motor
with SIEMENS, Dazhong brand
Inverters
with ABB/FUJI/LG/OMRON
Contactors
with SIEMENS/Schneider
Temperature controllers
with OMRON/RKC
PLC system
with SIEMENS/DELTA

- Skilled workers for machines producing
- Experience engineers all with passports ready for customers services
- Good Prices get from square quantity major parts purchase with lower cost
- Full line running test for customer checking before delivery

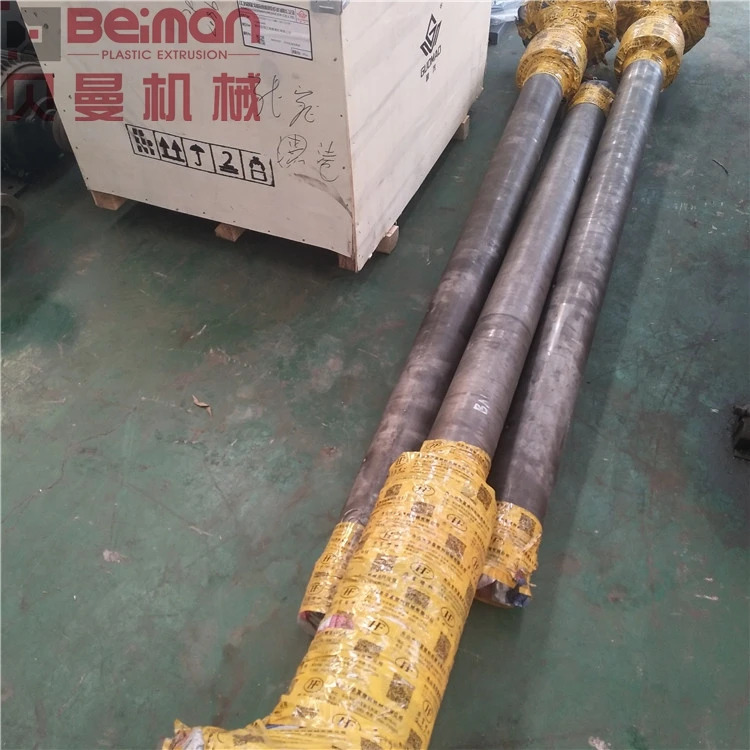

Packing & Delivery
Packaging
Size
3.2m(L) *1.4m(W) * 2.6m(H)
Weight
2T



Packaging Details
-Packaging: poly-wooden cases for SJ180/22 single screw extruder, no need fumigate; bubble films packaging

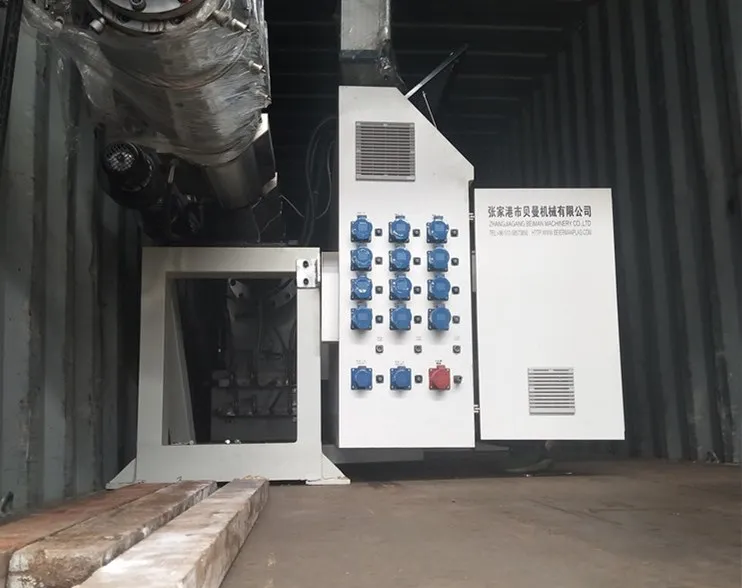

- We suggest the customer to purchase poly-wooden case packaging; if no, we will fixed the machines on containers walls with steel wires

- Shipping: By Sea or Train

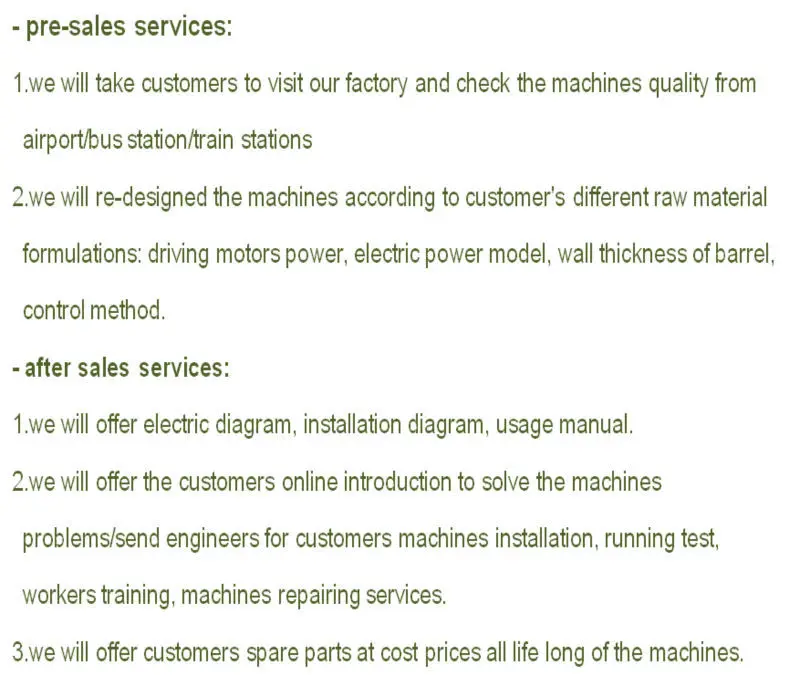

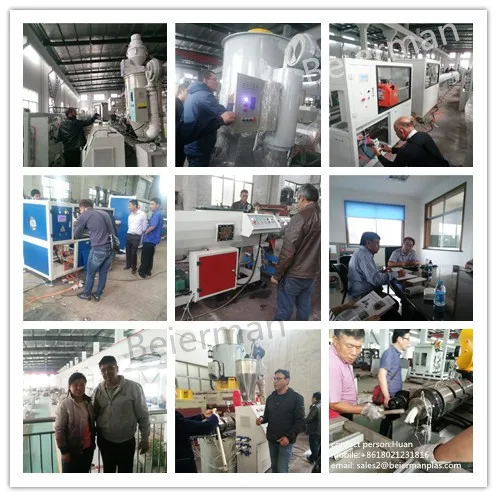

Our Service
Our Company
Exhibition

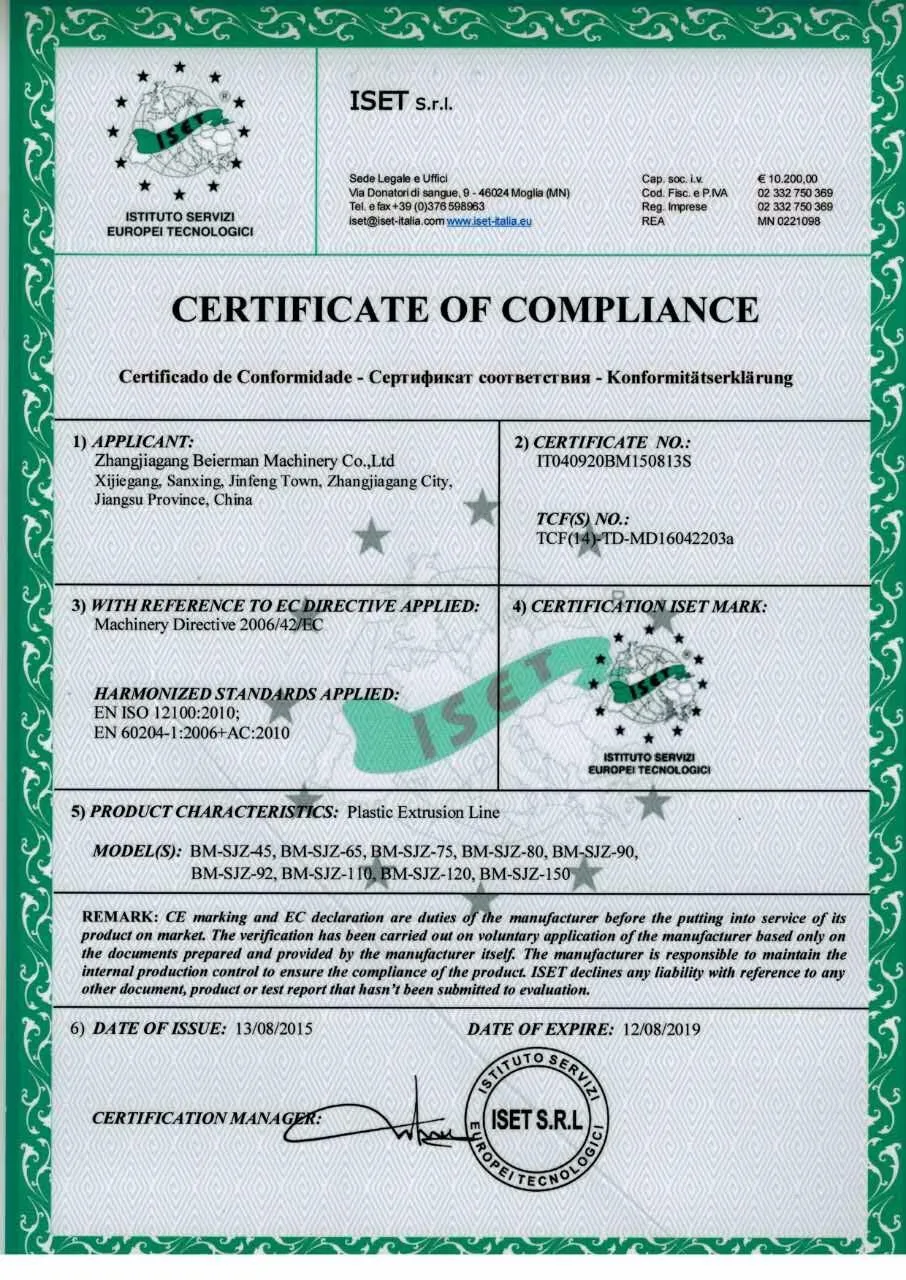

Certifications

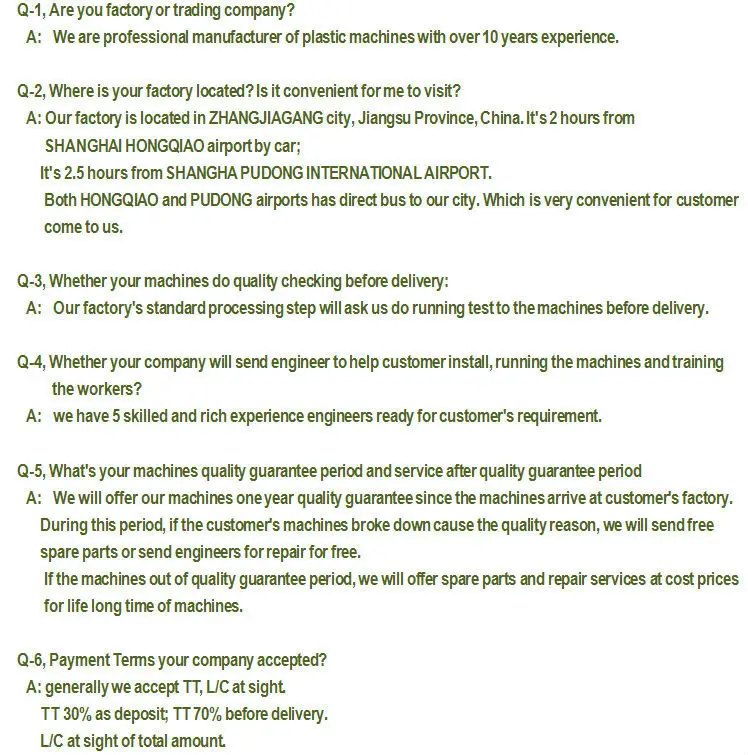

FAQ
